Reciprocating: QT

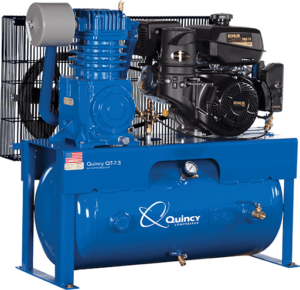

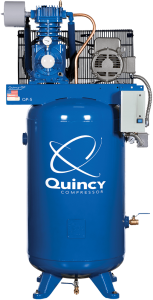

QT 3-15 hp Standard Duty Two Stage

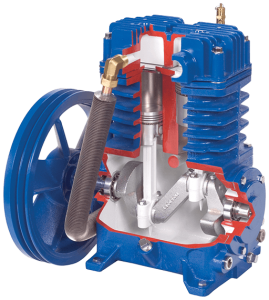

Leading the industry with the most acfm per brake horsepower, the Quincy QT™ ensures more air while consuming less energy in the production process. A one-piece aluminum head optimizes strength and dissipates heat, while Quincy’s unique valve design provides the highest volumetric efficiency available.

The reciprocating Quincy QT is a standard duty air compressor designed to deliver more CFM per brake horsepower, ensuring the powerful, reliable performance you demand. Basic QT models include:

• Quincy 5 hp air compressors including the 2V41C60VC and the 251CP80VCB
• Quincy 7.5 hp air compressors
• Quincy 10 hp air compressors
• Quincy 15 hp air compressors

  At a Glance

• Two-piece connecting rods
• High efficiency intercoolers
• Industrial class bearings
• Loadless auto stop/start
• Cast iron crankcase/cylinders

  Up Close

• 5-15 hp, 175 psig maximum
• Two Stage
• 100% duty cycle rated
• Splash lubrication system

Pro Unit

• “Standard” configuration Units
  • Ball Valve Tank Drain
  • Auto Start/Stop 5-10HP
  • Dual Control 15HP
• Shorter Lead Time-Stock Units
• Extended Warranty Available
  • Two-Year Package and
    Three-Year Pump vs. One-Year on configured units
• Easier to Order – Preassigned Part Numbers

 Max Unit

• Fully Loaded” Units
  • Air Cooled After Cooler
  • Electronic Drain
  • Low Oil Protection
  • Vibration Isolators
  • Auto Start/Stop 5 to 7.5HP
  • Dual Control on 10-15HP
• Extended Warranty Available
  • Two-Year Package and Three-Year Pump vs. One-Year on configured units
• Easier to Order – Preassigned Part Numbers
